Current Location ： Home > Products > Heat recovery fresh air fan for haze removal
● Domestic well-known brand motor: strong power, energy saving and stable.
● Double filtration system: Filter more than 95% of PM2.5 at one time.
● Ultra-thin body: saves installation space.
● Internal circulation function: (optional) When the outdoor air is seriously polluted, switch to indoor circulation and introduce a small amount of fresh air.
Covering air volume: 150~500(m3/h)
Heat recovery efficiency: 62~79(%)
Filtration efficiency: ≥95(%)
1. Indoor temperature display.
2. Three speed adjustment: low, medium and high.
3. Filter replacement reminder.
4. Built-in 485 communication interface.
5. Screen saver backlight, automatically turns off after 60 seconds.
Primary filtration: Aluminum alloy filter, can filter large particles, leaves, hair, etc., can be washed repeatedly.
High-efficiency filtration: PM2.5 is filtered 99% in one go.

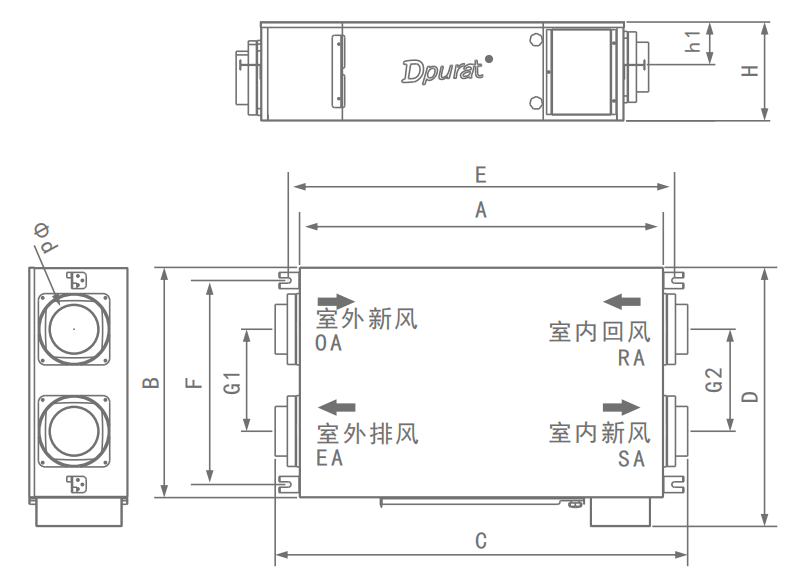

| Model | A | B | H | C | D | E | F | G1 | G2 | h1 | Φd |
| AHE-15W/PE1 | 762 | 481 | 200 | 870 | 550 | 806 | 422 | 206 | 206 | 77 | 110 |
| AHE-25W/PE1 | 880 | 660 | 218 | 988 | 732 | 924 | 613 | 362 | 362 | 138 | 150 |
| AHE-35W/PE1 | 1015 | 600 | 254 | 1122 | 670 | 1059 | 548 | 280 | 280 | 96 | 150 |
| AHE-50W/PE1 | 1020 | 800 | 253 | 1187 | 876 | 1083 | 741 | 373 | 373 | 103 | 200 |
Model | Voltage (V) | Rated power (W) | Air volume (m3/h) | Static pressure (Pa) | Heat recovery rate (%) | Heat recovery rate (%) | Noise dB(A) | Weight | ||||||||||
occupy | middle | Low | high | middle | Low | high | middle | Low | high | middle | Low | high | middle | Low | ||||
AHE-15W/PE1 | 220 | 98 | 83 | 71 | 150 | 125 | 100 | 60 | 60 | 65 | 70 | 64 | 69 | 74 | 34 | 31 | 28 | 20 |
AHE-25W/PE1 | 220 | 180 | 145 | 125 | 250 | 200 | 160 | 80 | 58 | 63 | 68 | 62 | 67 | 72 | 37 | 35 | 33 | 29 |
AHE-35W/PE1 | 220 | 286 | 230 | 185 | 350 | 270 | 210 | 100 | 58 | 63 | 68 | 62 | 67 | 72 | 39 | 35 | 30 | 33 |
AHE-50W/PE1 | 220 | 390 | 310 | 260 | 500 | 400 | 280 | 140 | 60 | 65 | 70 | 64 | 69 | 74 | 40 | 38 | 34 | 41 |
